Material Summary
Advanced structural ceramics, due to their special crystal framework and chemical bond qualities, reveal efficiency benefits that steels and polymer products can not match in severe environments. Alumina (Al Two O TWO), zirconium oxide (ZrO TWO), silicon carbide (SiC) and silicon nitride (Si six N ₄) are the four major mainstream design ceramics, and there are vital distinctions in their microstructures: Al ₂ O six comes from the hexagonal crystal system and relies upon strong ionic bonds; ZrO two has 3 crystal forms: monoclinic (m), tetragonal (t) and cubic (c), and acquires special mechanical residential properties with phase change toughening mechanism; SiC and Si Three N ₄ are non-oxide ceramics with covalent bonds as the main part, and have stronger chemical stability. These architectural differences directly lead to substantial differences in the preparation procedure, physical buildings and design applications of the four. This short article will systematically examine the preparation-structure-performance connection of these four porcelains from the viewpoint of products scientific research, and explore their potential customers for industrial application.

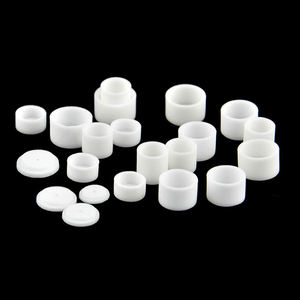

(Alumina Ceramic)
Prep work process and microstructure control
In terms of preparation process, the 4 porcelains show evident distinctions in technical routes. Alumina ceramics make use of a fairly typical sintering process, typically making use of α-Al two O five powder with a pureness of more than 99.5%, and sintering at 1600-1800 ° C after dry pushing. The trick to its microstructure control is to prevent abnormal grain growth, and 0.1-0.5 wt% MgO is usually included as a grain limit diffusion prevention. Zirconia porcelains require to introduce stabilizers such as 3mol% Y TWO O ₃ to keep the metastable tetragonal phase (t-ZrO ₂), and use low-temperature sintering at 1450-1550 ° C to stay clear of extreme grain growth. The core process difficulty hinges on precisely controlling the t → m stage transition temperature level window (Ms point). Given that silicon carbide has a covalent bond proportion of up to 88%, solid-state sintering needs a heat of greater than 2100 ° C and relies on sintering help such as B-C-Al to form a liquid phase. The response sintering method (RBSC) can accomplish densification at 1400 ° C by penetrating Si+C preforms with silicon thaw, however 5-15% totally free Si will certainly stay. The prep work of silicon nitride is the most complicated, typically using general practitioner (gas pressure sintering) or HIP (warm isostatic pressing) processes, including Y TWO O FOUR-Al two O six collection sintering aids to create an intercrystalline glass stage, and warm therapy after sintering to crystallize the glass phase can significantly enhance high-temperature efficiency.

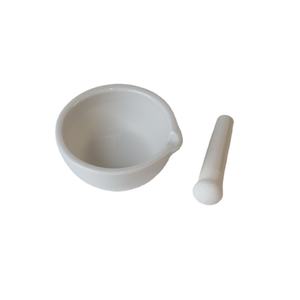

( Zirconia Ceramic)
Comparison of mechanical residential properties and enhancing mechanism
Mechanical residential or commercial properties are the core analysis indications of architectural ceramics. The four sorts of materials reveal completely various conditioning systems:

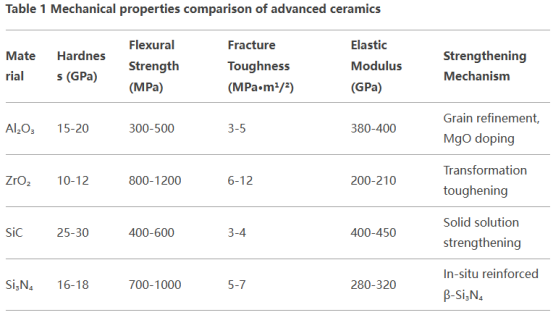

( Mechanical properties comparison of advanced ceramics)
Alumina mostly counts on fine grain conditioning. When the grain size is reduced from 10μm to 1μm, the stamina can be raised by 2-3 times. The superb toughness of zirconia originates from the stress-induced stage change device. The stress field at the fracture pointer activates the t → m stage change accompanied by a 4% volume expansion, resulting in a compressive tension shielding impact. Silicon carbide can enhance the grain boundary bonding strength with solid option of components such as Al-N-B, while the rod-shaped β-Si six N four grains of silicon nitride can produce a pull-out result comparable to fiber toughening. Split deflection and bridging contribute to the enhancement of strength. It is worth keeping in mind that by building multiphase ceramics such as ZrO TWO-Si Six N Four or SiC-Al ₂ O ₃, a variety of strengthening devices can be coordinated to make KIC exceed 15MPa · m ¹/ TWO.
Thermophysical properties and high-temperature actions
High-temperature security is the crucial advantage of structural ceramics that differentiates them from traditional products:

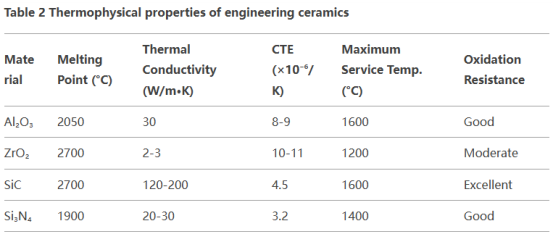

(Thermophysical properties of engineering ceramics)
Silicon carbide displays the best thermal administration efficiency, with a thermal conductivity of approximately 170W/m · K(equivalent to aluminum alloy), which is due to its basic Si-C tetrahedral structure and high phonon propagation rate. The low thermal development coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have outstanding thermal shock resistance, and the critical ΔT worth can reach 800 ° C, which is especially appropriate for duplicated thermal biking settings. Although zirconium oxide has the greatest melting factor, the conditioning of the grain border glass phase at heat will cause a sharp drop in stamina. By embracing nano-composite technology, it can be raised to 1500 ° C and still maintain 500MPa toughness. Alumina will certainly experience grain limit slip above 1000 ° C, and the addition of nano ZrO two can create a pinning result to prevent high-temperature creep.
Chemical security and rust actions
In a corrosive setting, the four sorts of porcelains show considerably various failing systems. Alumina will liquify externally in strong acid (pH <2) and strong alkali (pH > 12) remedies, and the rust price increases significantly with increasing temperature level, getting to 1mm/year in steaming focused hydrochloric acid. Zirconia has excellent resistance to not natural acids, yet will certainly go through reduced temperature deterioration (LTD) in water vapor environments over 300 ° C, and the t → m phase change will certainly lead to the formation of a microscopic fracture network. The SiO two safety layer based on the surface area of silicon carbide provides it excellent oxidation resistance listed below 1200 ° C, however soluble silicates will certainly be produced in molten antacids steel atmospheres. The deterioration behavior of silicon nitride is anisotropic, and the rust price along the c-axis is 3-5 times that of the a-axis. NH ₃ and Si(OH)₄ will certainly be created in high-temperature and high-pressure water vapor, causing product bosom. By optimizing the composition, such as preparing O’-SiAlON porcelains, the alkali deterioration resistance can be enhanced by more than 10 times.

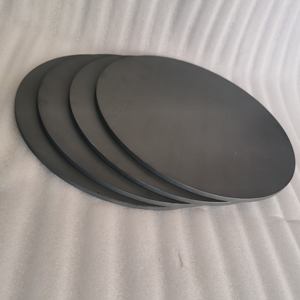

( Silicon Carbide Disc)
Typical Design Applications and Situation Studies
In the aerospace field, NASA makes use of reaction-sintered SiC for the leading edge components of the X-43A hypersonic airplane, which can withstand 1700 ° C wind resistant heating. GE Air travel utilizes HIP-Si ₃ N four to make wind turbine rotor blades, which is 60% lighter than nickel-based alloys and enables greater operating temperatures. In the medical area, the crack stamina of 3Y-TZP zirconia all-ceramic crowns has gotten to 1400MPa, and the service life can be reached more than 15 years with surface gradient nano-processing. In the semiconductor market, high-purity Al two O five porcelains (99.99%) are made use of as cavity materials for wafer etching equipment, and the plasma rust rate is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm elements < 0.1 mm ), and high production expense of silicon nitride(aerospace-grade HIP-Si three N ₄ gets to $ 2000/kg). The frontier advancement directions are focused on: ① Bionic structure layout(such as covering layered framework to boost sturdiness by 5 times); two Ultra-high temperature sintering technology( such as spark plasma sintering can achieve densification within 10 minutes); six Smart self-healing porcelains (containing low-temperature eutectic phase can self-heal splits at 800 ° C); ④ Additive manufacturing technology (photocuring 3D printing accuracy has actually reached ± 25μm).
( Silicon Nitride Ceramics Tube)
Future development trends
In a thorough comparison, alumina will still control the standard ceramic market with its expense advantage, zirconia is irreplaceable in the biomedical area, silicon carbide is the recommended material for extreme environments, and silicon nitride has great prospective in the field of high-end tools. In the next 5-10 years, with the combination of multi-scale architectural guideline and intelligent production technology, the performance limits of engineering ceramics are expected to attain brand-new breakthroughs: for example, the layout of nano-layered SiC/C porcelains can attain toughness of 15MPa · m 1ST/ ², and the thermal conductivity of graphene-modified Al two O five can be raised to 65W/m · K. With the development of the “double carbon” method, the application range of these high-performance ceramics in new power (fuel cell diaphragms, hydrogen storage space materials), environment-friendly production (wear-resistant parts life raised by 3-5 times) and other areas is expected to keep an ordinary yearly growth rate of more than 12%.
